RevX 5.0HP Premium High-Capacity Chiller
The RevX 5.0HP Pool Series Chiller is our premium level high-capacity chiller, built for professional-grade cooling and heating.
Designed for use with pools and large capacity tubs up to 800 gallons. For those who want a permanent in-ground luxury cold plunge, and demand the best performance.

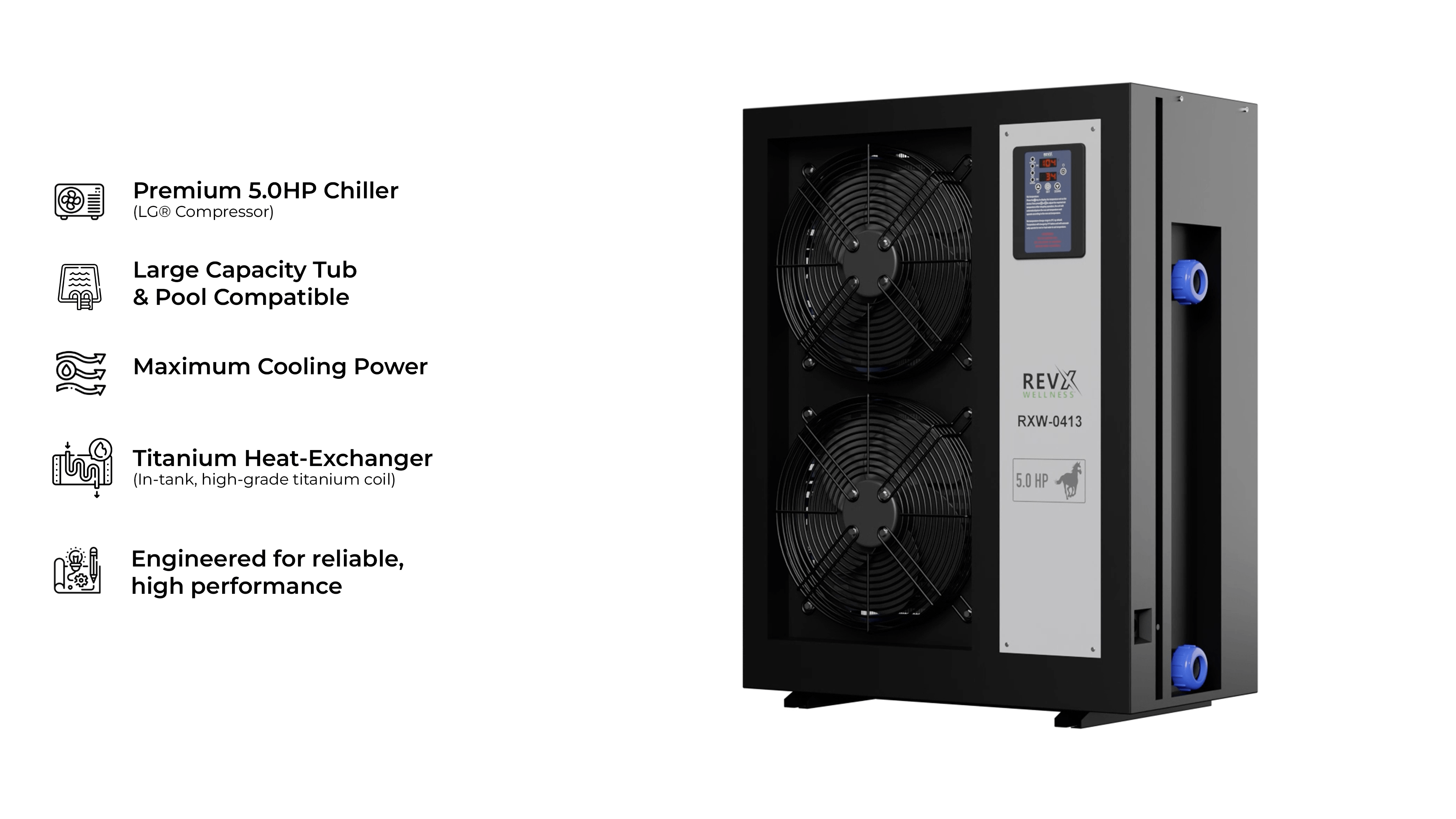

- Large Capacity Tub / Pool Compatible: Easy to install and integrate with pools and large capacity tubs up to 800 gallons.
- Premium Cooling Power: Engineered with 5.0HP strength, powered by LG® compressor and titanium heat-exchanger.
- Titanium Heat-Exchanger: In-tank high-grade titanium coil offers a reliable and powerful cooling and heating technology.
- Unmatched Temperature Control: Consistently chills water down to 34°F and heats up to 104°F (heating feature comes standard) with high efficiency.
- Uncompromising quality for luxury plungers: Designed for those who want a permanent in-ground luxury cold plunge, and demand the best performance.
- Commercial-Grade Reliability: Heavy-duty metal construction, LG® compressor, and titanium heat-exchanger with reinforced components for reliable operation and long-term durability.
- Wifi Connectivity: Control your chiller remotely - adjust settings, program a schedule, and track your sessions.
- Free Shipping: Enjoy free shipping on all orders to the Continental U.S.
Click here to download the technical specifications sheet.
Model Number (P/N#)
RXW-0454
Product rating
5.0HP
Cooling function
YES
Heating function
YES
Power supply
220V/60Hz
Power draw (max)
18A - 3800W
Cooling capacity
12500W
Temperature range
34° - 104°F
Refrigerant / Total weight
R410A/5.8Lbs
Recommended tank size
Up to 800 gallons
Recommended water pump
350W - 400W (220V)
Maximum tank pressure
72.5 PSI
Product weight
260Lbs
Product dimensions
33.5 x 18 x 48"
- RevX 5.0HP High-Capacity Chiller Unit
- Quick-start installation guide
- Free shipping
Does the 5.0HP chiller work with any tub?
- Yes, the 5.0HP chiller can work with any tub up to 450 gallons.
What’s the difference between 3.0HP and 5.0HP?
- Capacity. 450 gallons maximum for the 3.0HP and 800 gallons maximum for the 5.0HP.
How do I install it?
- The 5.0HP chiller is made to be paired with pool-grade water pumps and filtration.
Can it be used outdoors?
- Yes, IP54 rated.
What’s the warranty coverage?
- 1 year standard warranty, with extended warranty available up to 5 years.
$5,500.00
